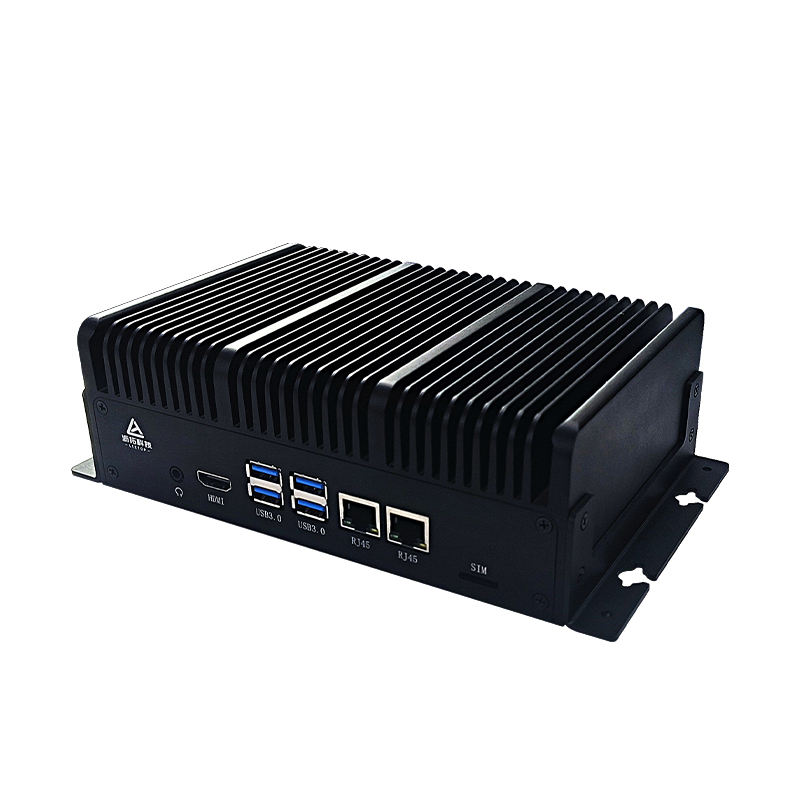

Product description:
Leetop_ALP_607 is an embedded Al computer based onNvidia's Orin NX core board, enabling computing power up to70/100TOPS for a wide range of terminal devices.Leetop_ALP_607 provides fast active cooling design to meetindustry standards such as anti-seismic and anti-static. At thesame time, Leetop_ALP_607 has abundant ports and high costperformance.
Product specifications
Processor module:
| Jetson Orin NX 8GB | Jetson Orin NX 16GB | |
| AI Performance | 70 TOPS | 100 TOPS |
| GPU | 1024-core NVIDIA Ampere GPU with 32 Tensor Cores | |
| CPU | 6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 | 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
| Video Encode |
1x 4K60 | 3x 4K30 | 6x 1080p60 | 12x 1080p30 (H.265) 1x 4K60 | 2x 4K30 | 5x 1080p60 | 11x 1080p30 (H.264) |
|
| Video Decode |
1x 8K30 | 2x 4K60 | 4x 4K30 | 9x 1080p60| 18x 1080p30 (H.265) 1x 4K60 | 2x 4K30 | 5x 1080p60 | 11x 1080p30 (H.264) |
|
| Memory | 8 GB 128-bit LPDDR5 102.4 GB/s | 16 GB 128-bit LPDDR5 102.4 GB/s |
| Storage |
— (Supports external NVMe) |
|
I/O：
| Interface | Specification |
| Network | 2 × Gigabit Ethernet Connector (10/100/1000) |
| USB | 4x USB 3.0 Type A (Integrated USB 2.0) 1x USB 2.0+3.0 Type |
| Video output | 1 × HDMI |
| CAN | 1 × CAN 1CAN（Receiver. Transceiver） |
| RS485 | 1 x RS485 |
| RS232 | 1 x RS232 |
| SPI Bus | 1 × SPI Bus(+3.3V Level) |
| M.2 KEY M | 1x M.2KEY M |
| USB2.0+3.0 | ZIF 20P 0.5mm pitch |
Power Supply：
| Power Supply | Spec |
| Input Voltage | +12（7A)--+36V(3A) DC Input |
| power consumption | 70W |
Mechanical：
| Mechanical | Spec |
| Dimensions (W×D ×H) | 224x130x65.5(mm) |
| Weight | 2KG |
Environmental：
| Environmental | Spec |
| Operating Temperature | -25℃-75℃ 0.2~0.3m/s Turbulence |
| Storage Temperature | -20℃-60℃ |
| Storage Humidity | 10%-90% non-condensing |
Schematic diagram of dimensions：

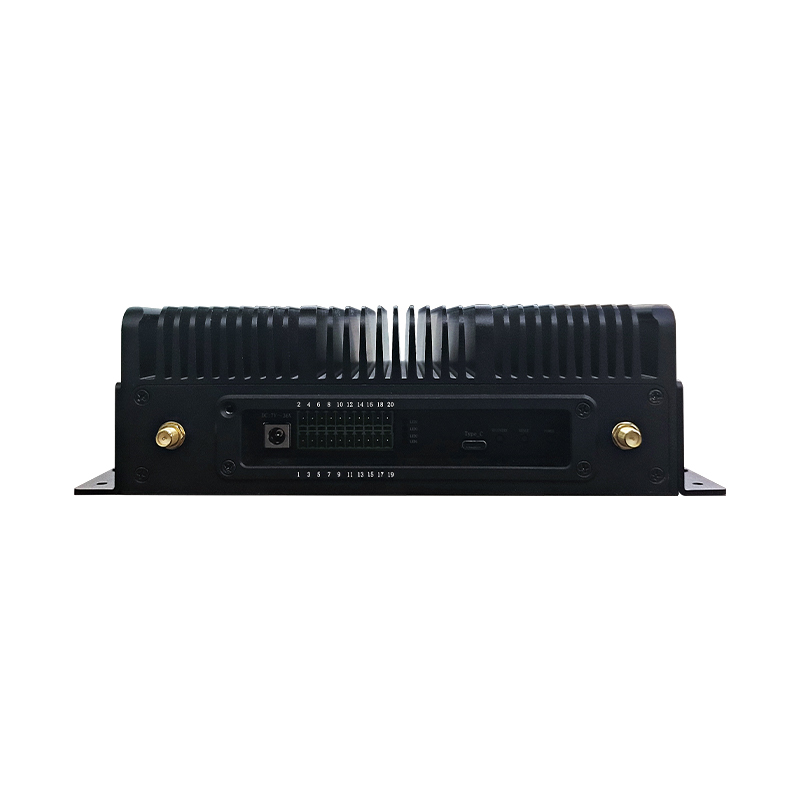

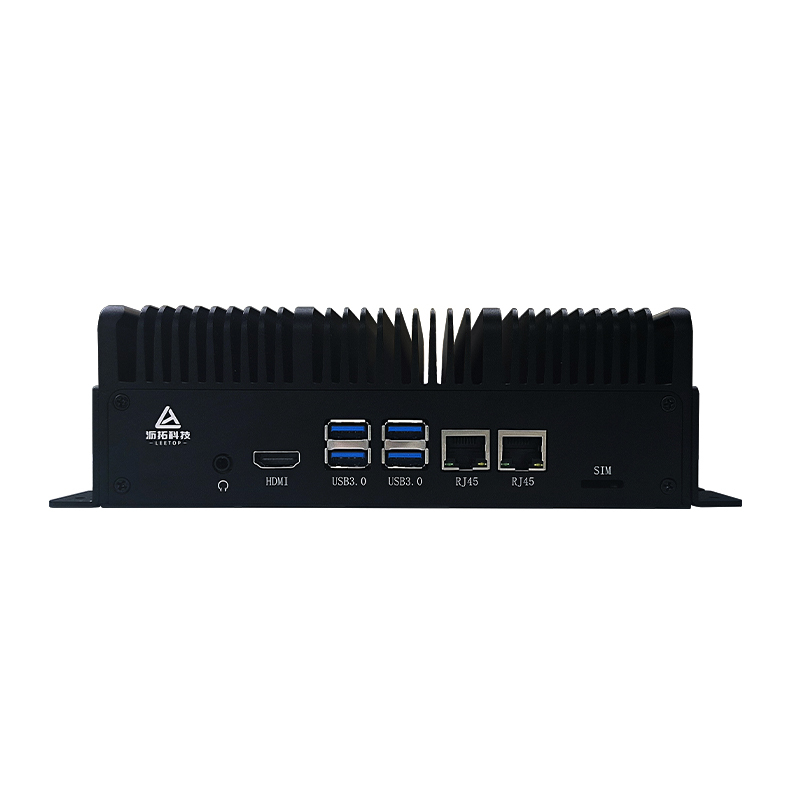

| Front view | Left view |
 |
 |
| Up view | Rear view |
 |
 |
