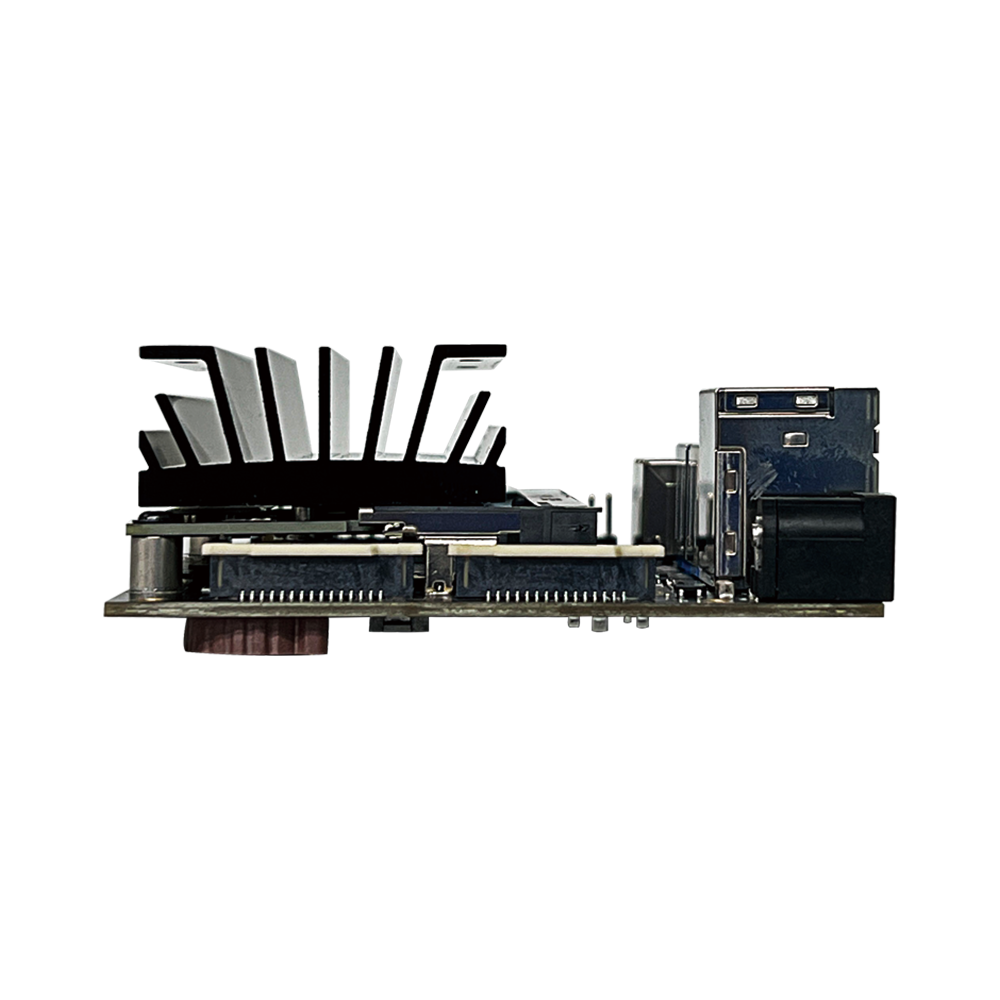

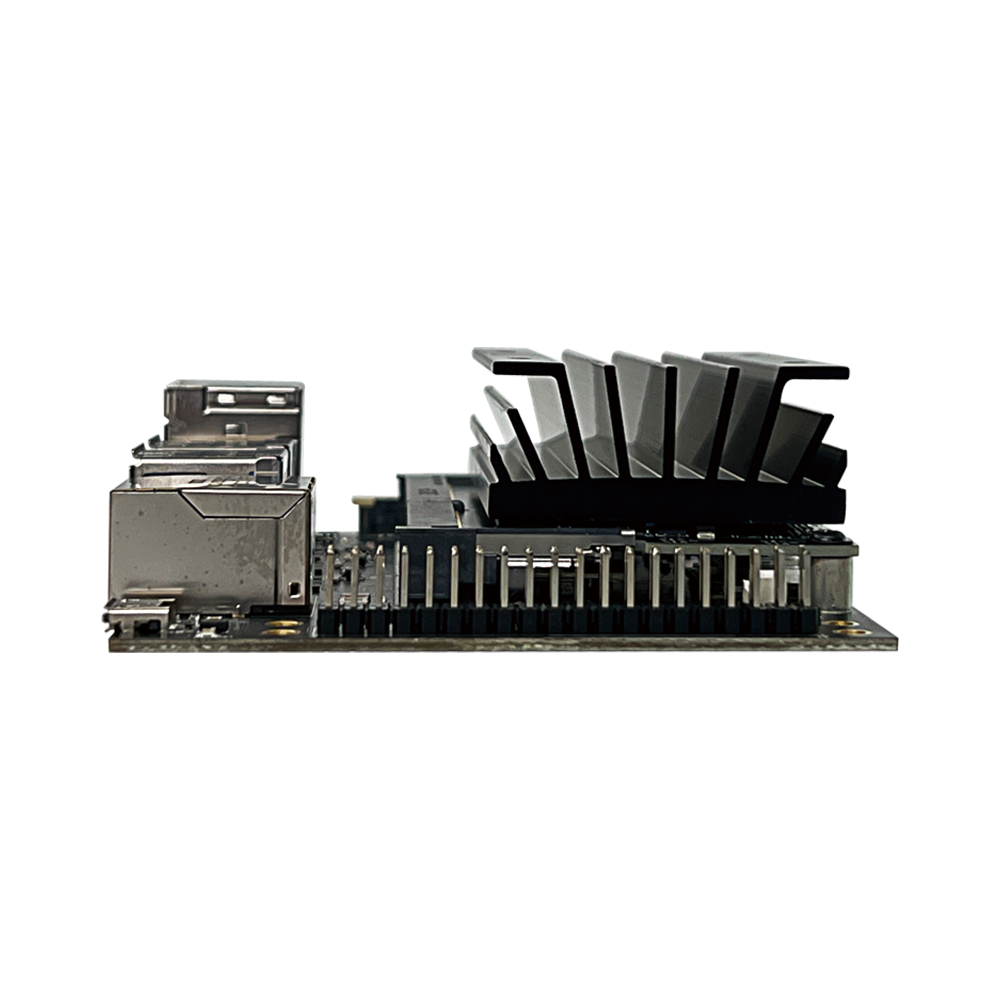

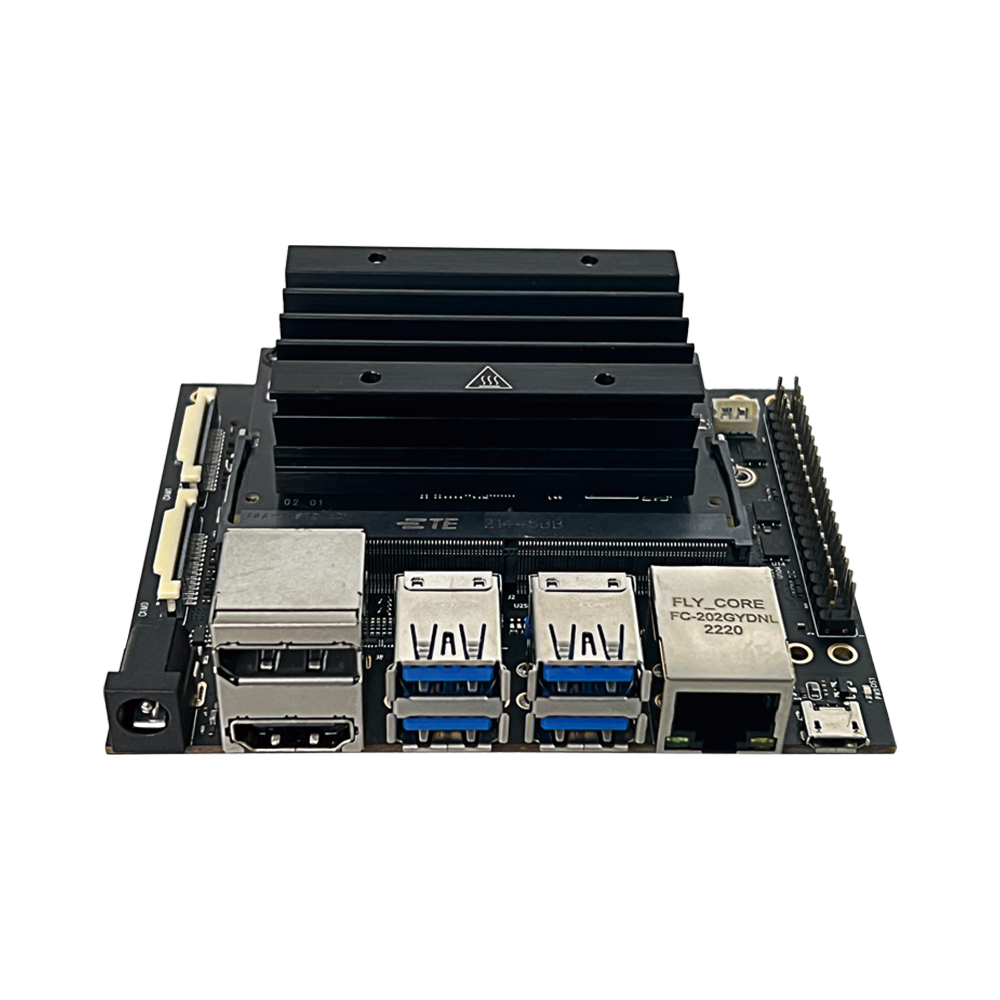

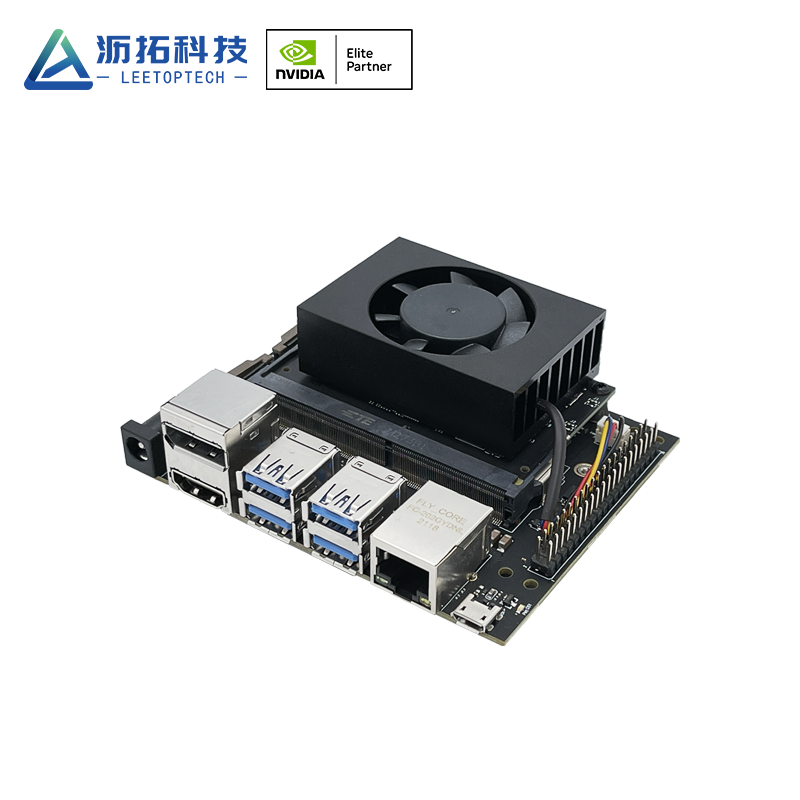

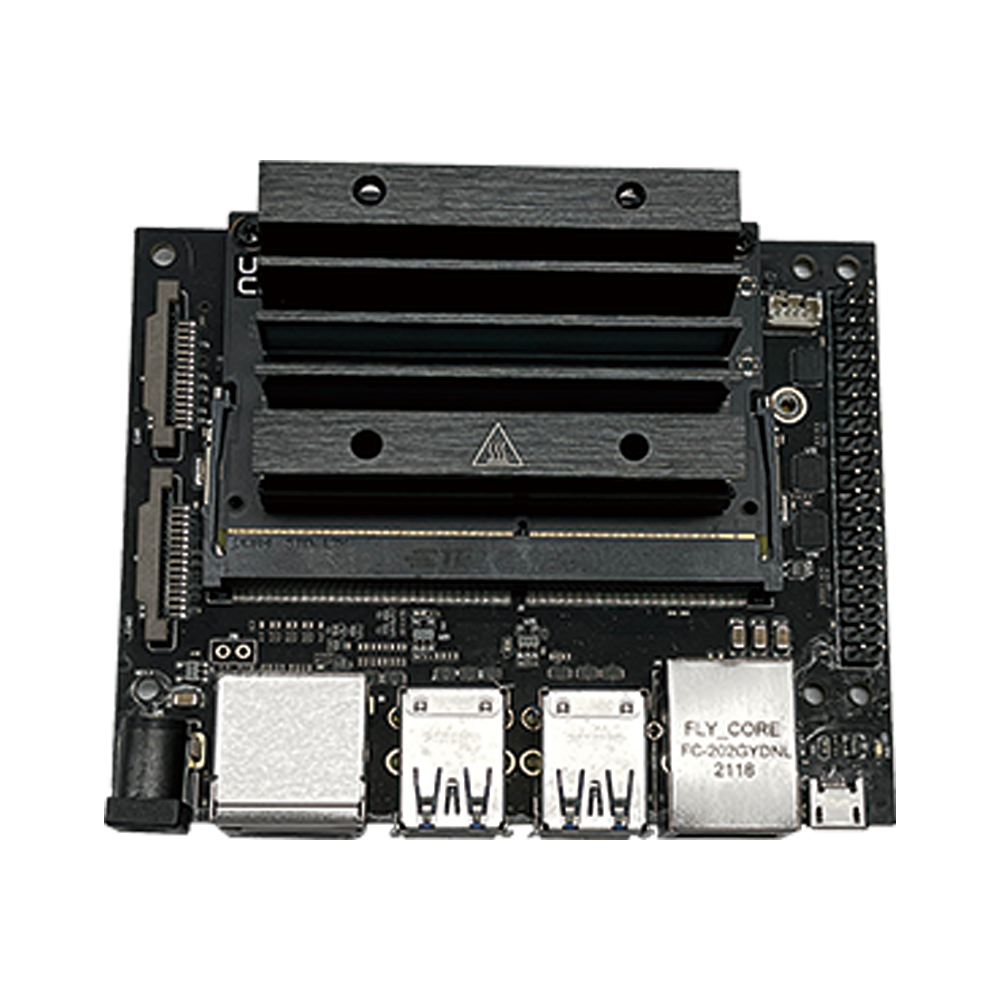

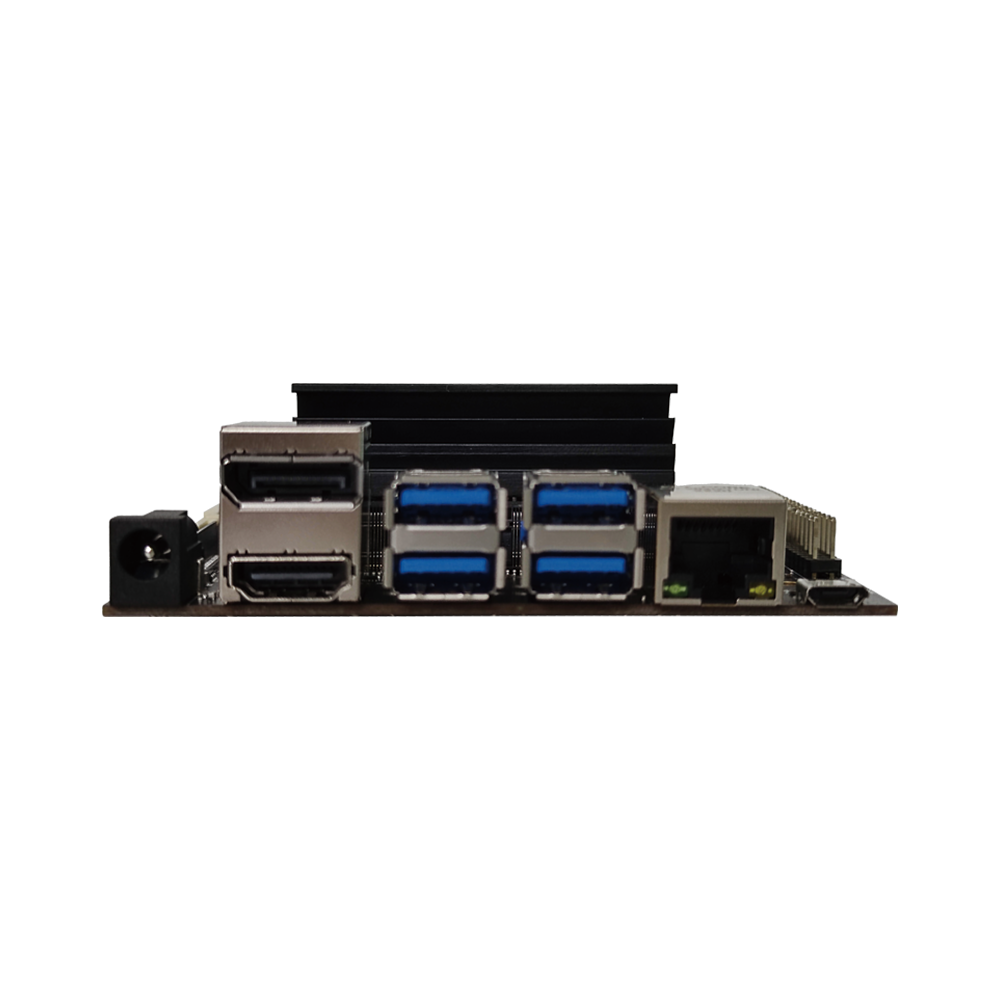

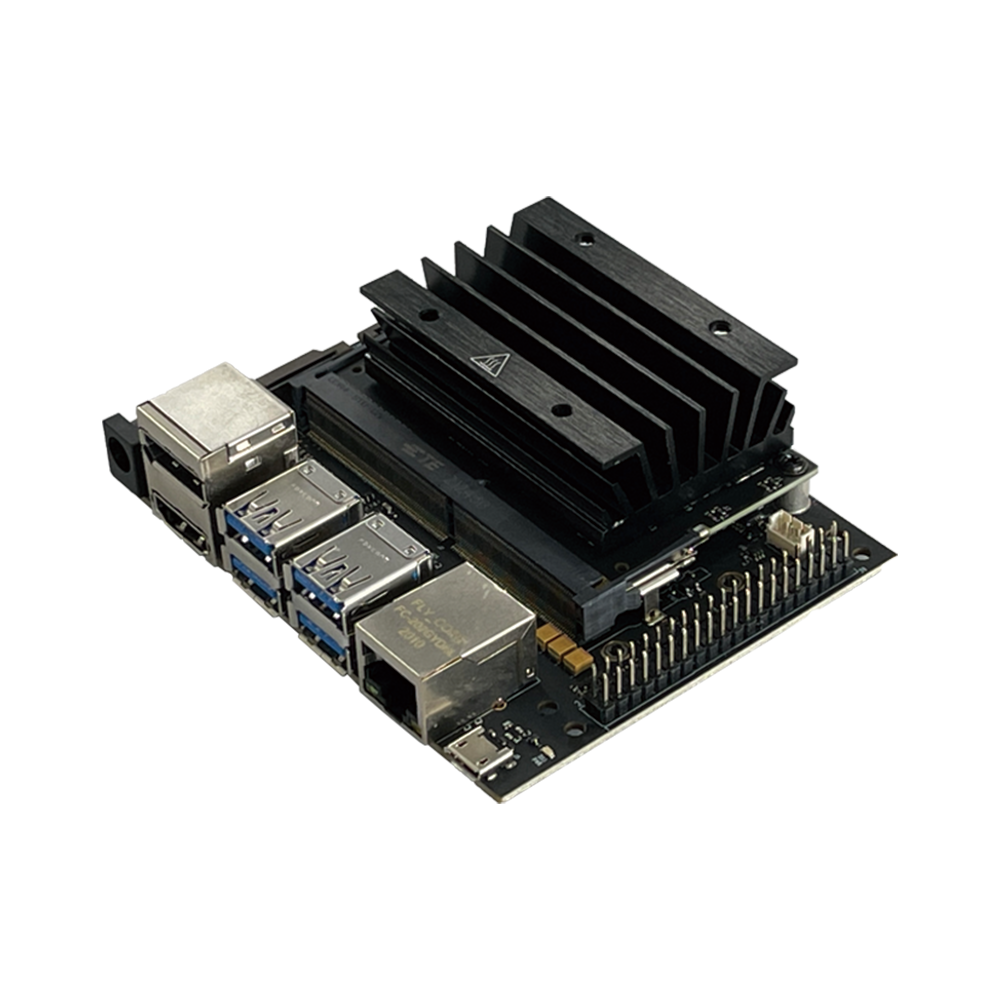

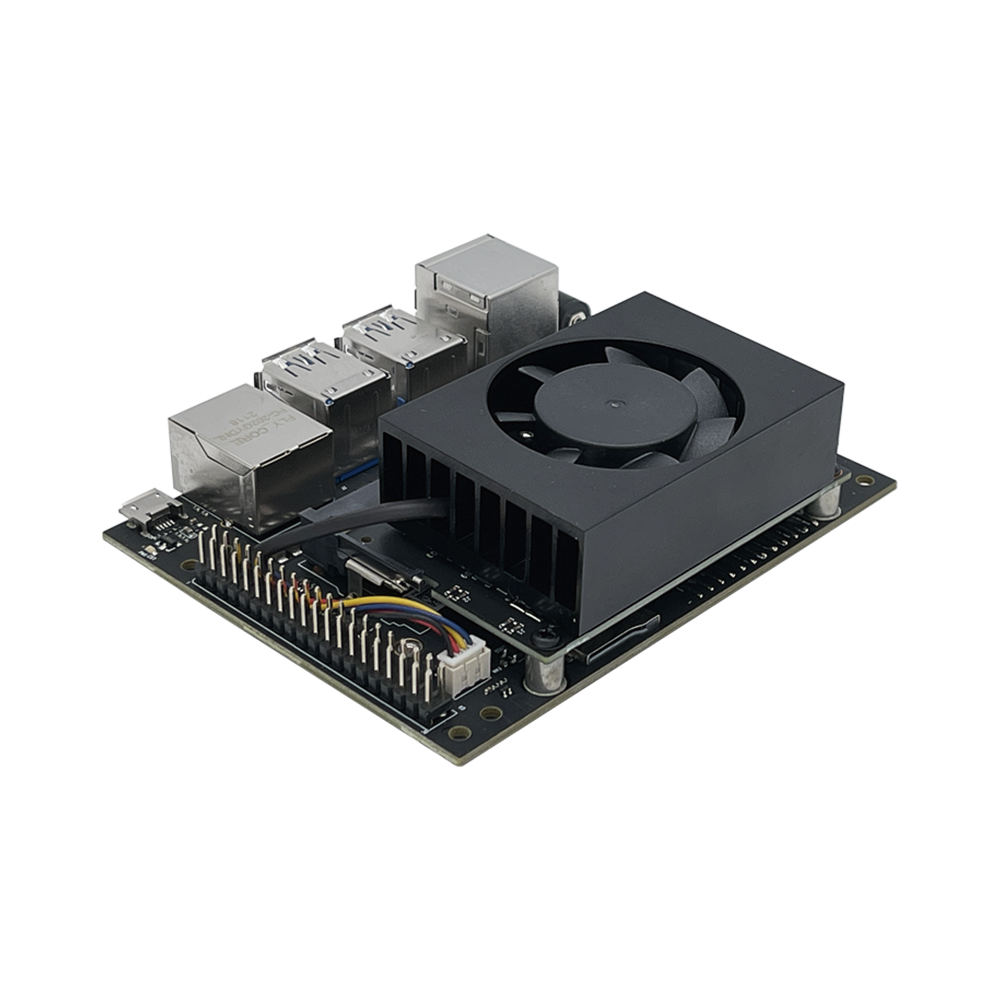

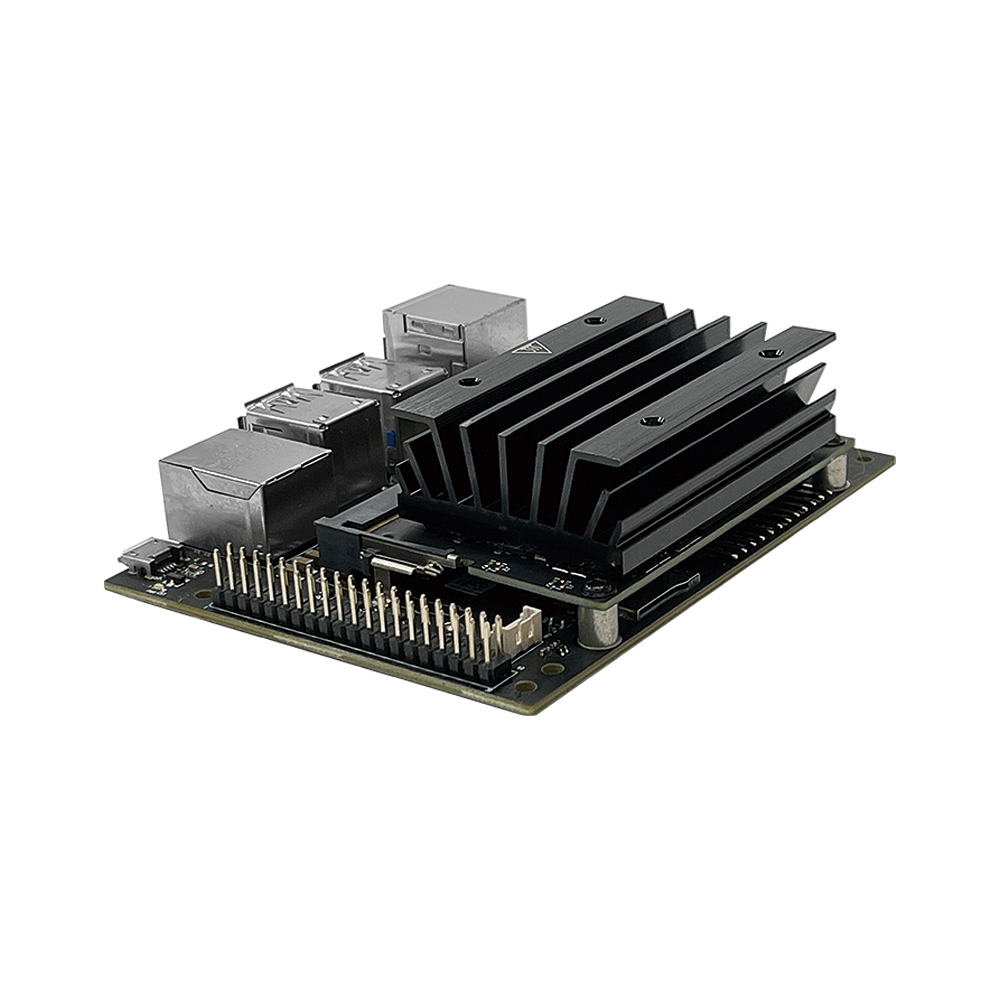

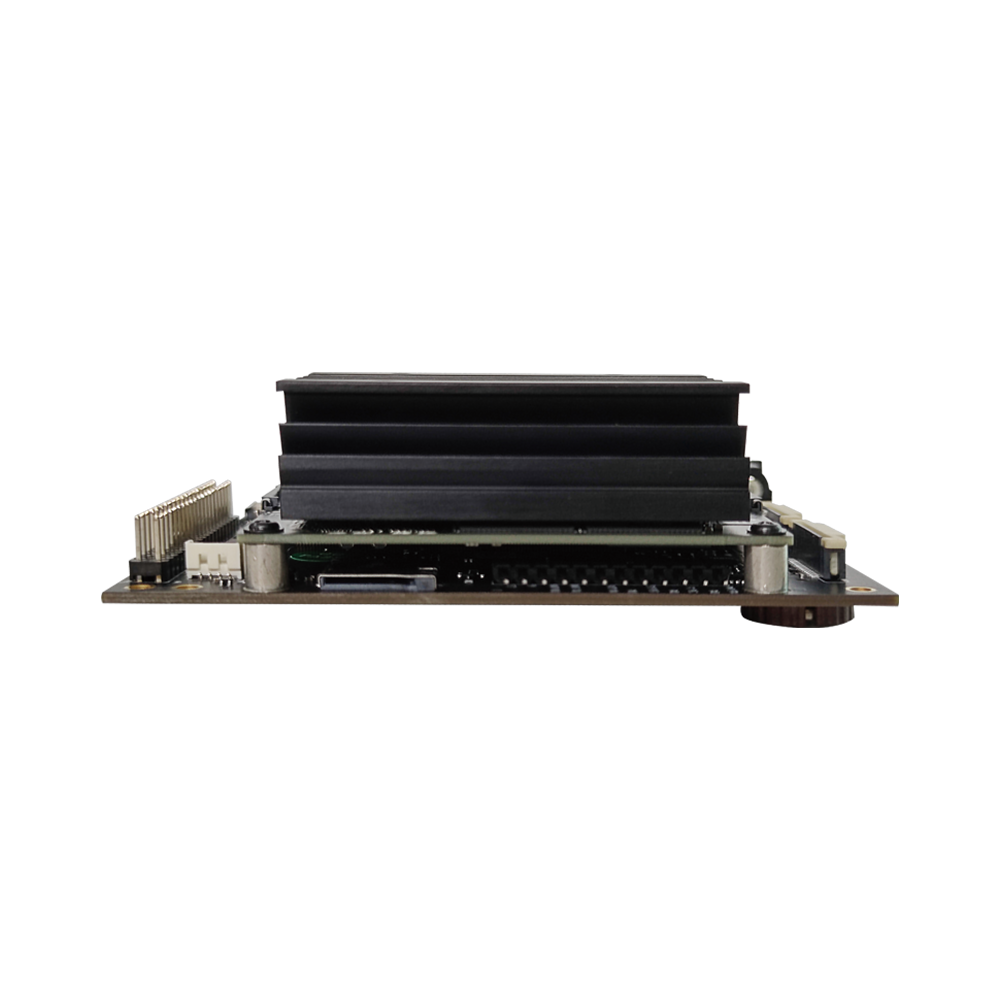

Leetop_A206 is a high-performance, interface-rich NVIDIA Jetson Xavier NX/Nano carrier module developed based on NVIDIA's Xavier NX/Nano module.
Leetop_A206 is a high-performance, interface-rich NVIDIA Jetson Xavier NX/Nano carrier module developed based on NVIDIA's Xavier NX/Nano module.It can give up to 21 TOPS (INT8)/472 GFLOPs computing power to many enddevices, while the A206 carrier board provides rich peripheral interfaces. It canmeet industrial standards such as earthquake resistance and anti-static。
| Interface | Specifications |
| DC | Power supply interface |
| Display | 1 x HDMI;1xDP |
| USB | 4x USB 3.0 Type A(Integrated USB 2.0) lx Micro USB 2.0(Support OTG) |
| Network | 1x Gigabit Ethernet (10/100/1000) |
| Standard USB WIFI MODE(4 PIN Interface) |
USB WIFI MODE |
| M.2 KEY M | lx M.2 KEY M Interface |
| Camera | 2x Camera |
| FAN | 2 x Fan(12V/5V),1 x FAN(5V PWM) |
| CAN | 1x CAN |
